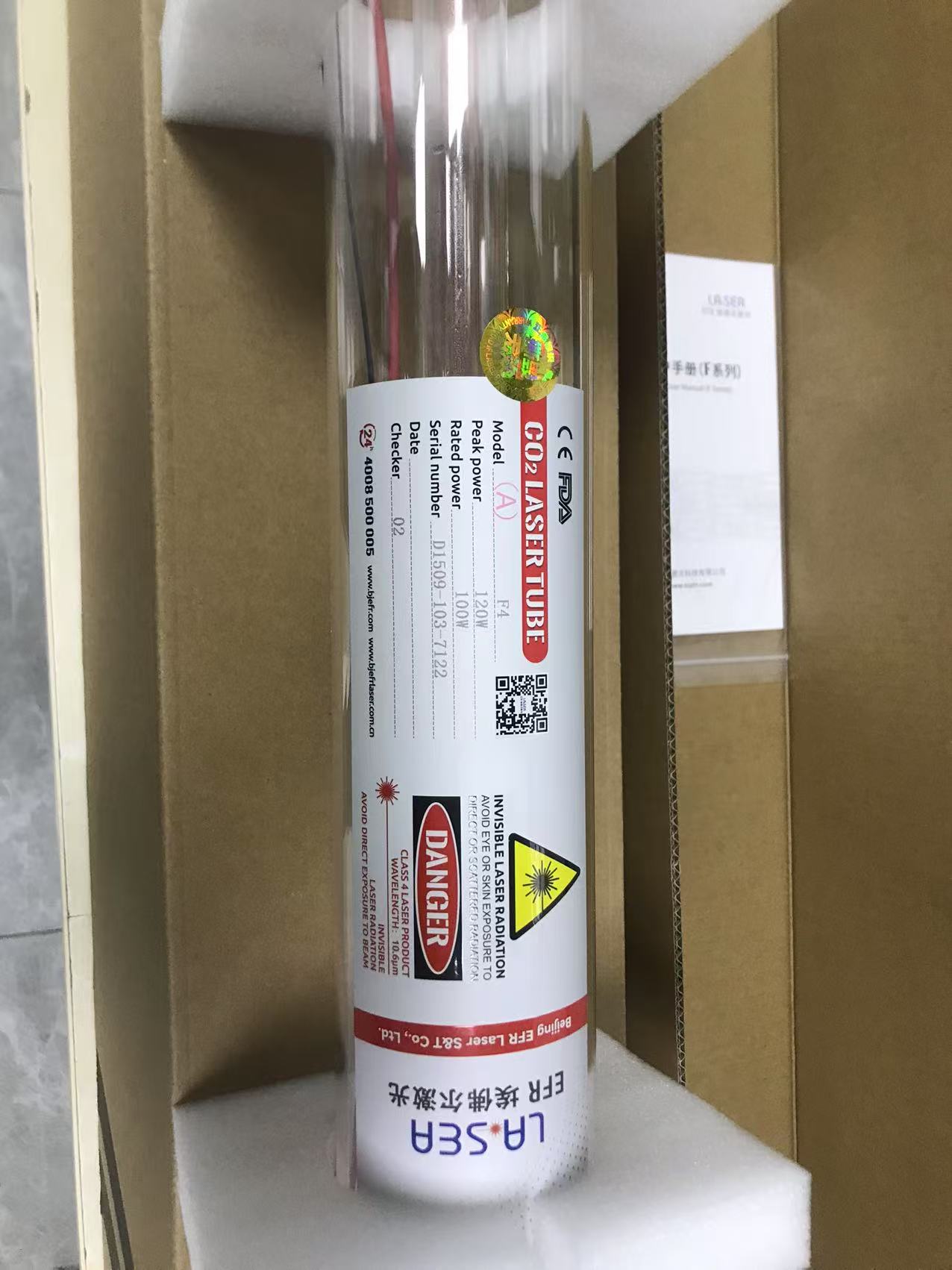

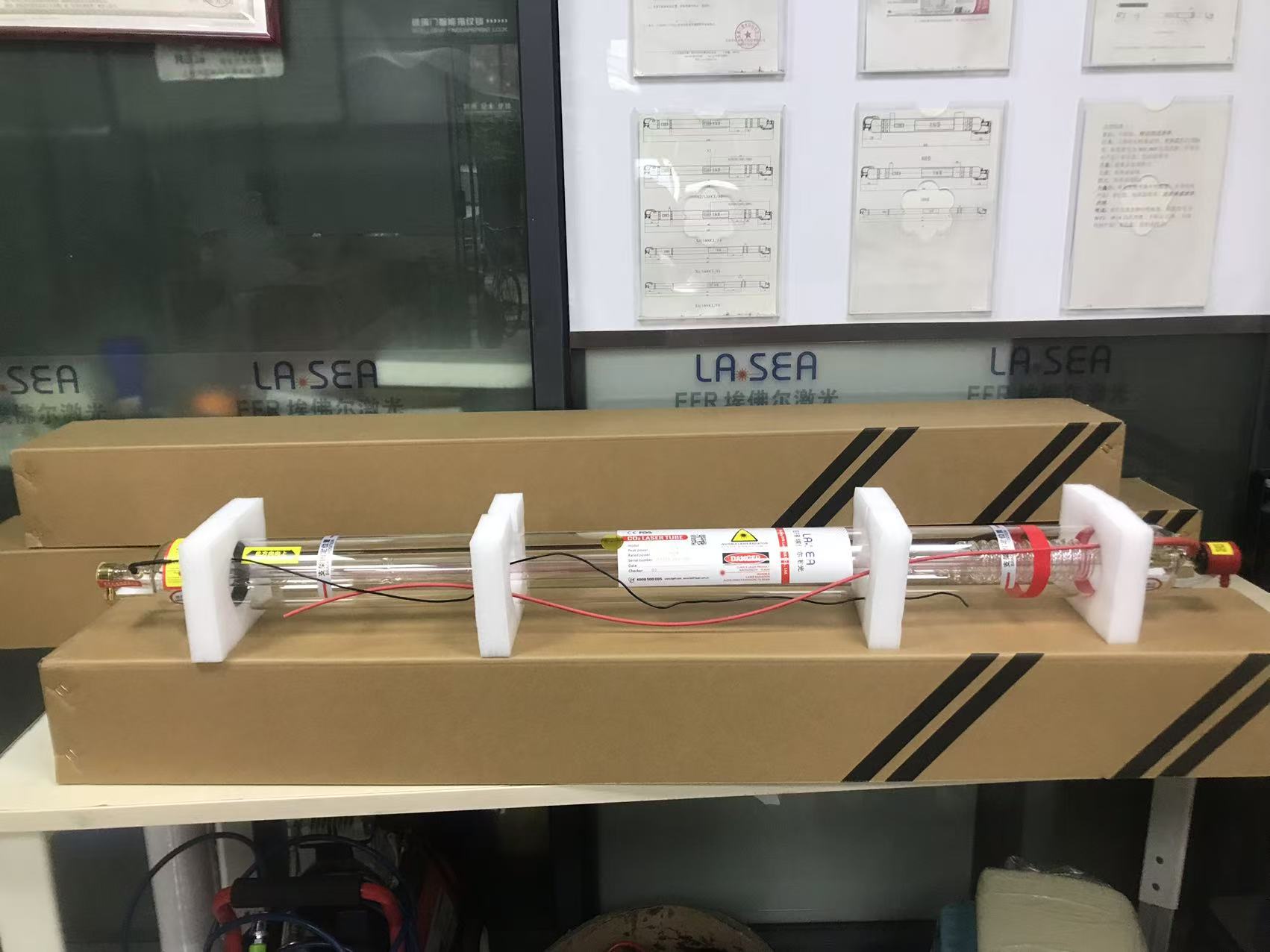

Co2 Glass Laser tube

Please install in strict accordance with the Installation diagram of F series.The laser is equipped with a special power supply (see the table below for specific power supply model).The positive electrode zone is high voltage. The starting voltage is shown in the table below.

Results caused by wrong installation: firing, the inner tube was broken and leak water.

Water Cooling: cooling liquid must be pure water, flow is 3-5 Liter per minute, standard water temperature:10℃-40℃. Working Environment:2-40℃,humidity:10-60%.

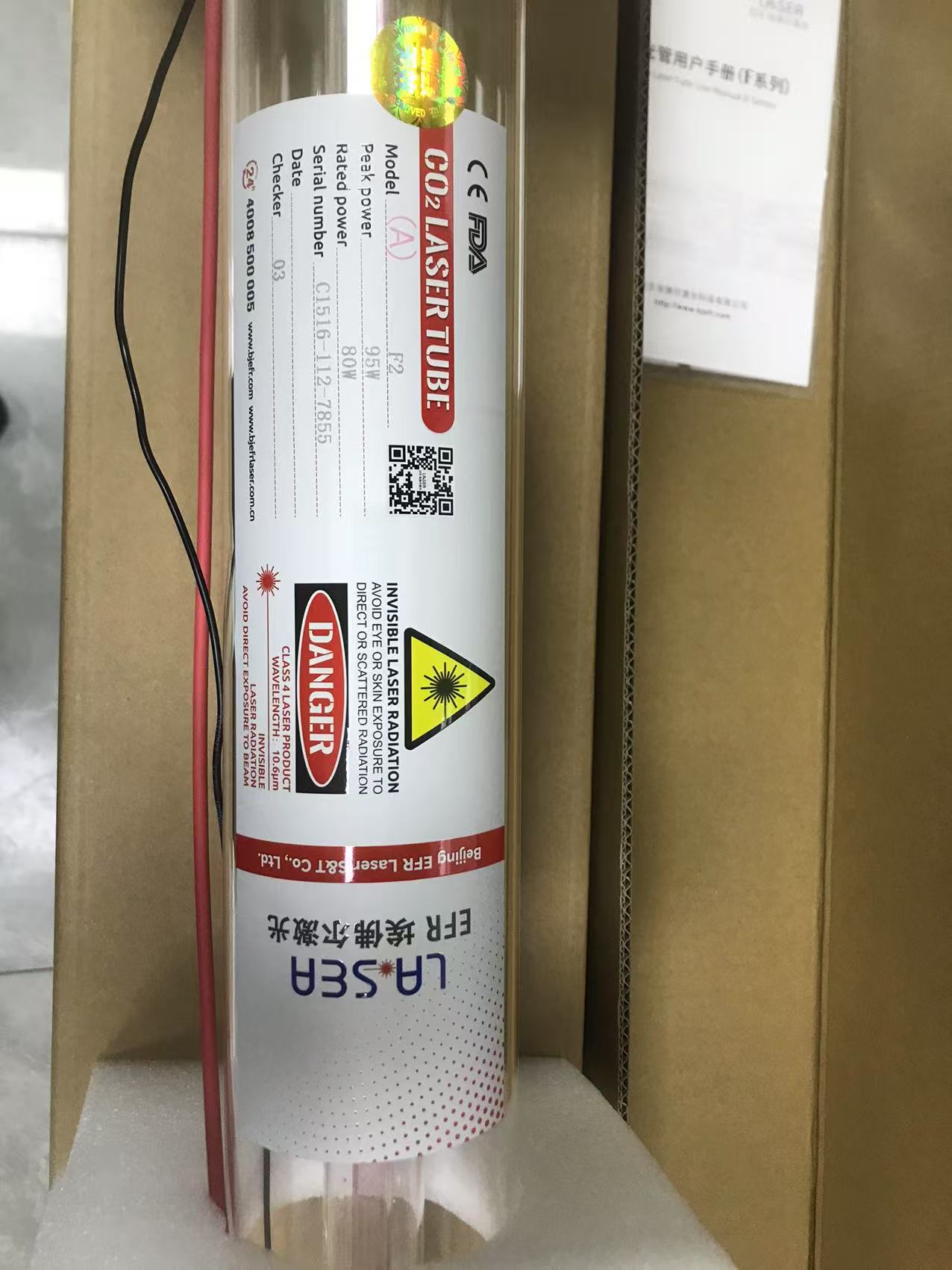

Table description (take F2 as an example):Detected    current    28mA,allowed maximum working current 28mA,daily working current must be less than 25mA.If working current is less than 25mA,the laser tube working life can be 6000hours.The above mentioned current is the current showed in the Ammeter which is series connected to cathode.

If the user does not operate as this request: the cathode will change color when used for a long period of ultra-current, and the laser tube service life will be greatly shortened. To protect the electrode from dust, please wrap the high voltage cap by plastic wrap.

The output mirror surface  cannot  be  cleaned  by  anything even  if cotton  ball. Otherwise the power will be reduced a lot.

Cleaning  Instruction  is  as  follows:1)do  not  turn  on the  laser  if the  mirror  is  dirty, 2)blow the  mirror  surface  by  oblique  front  balloon,3)spray  pure  alcohol  to  the  mirror surface by injector,4)do not turn on laser till the alcohol is volatilized, 5)If none of the above cleaning  methods  is  effective, a  professional staff can  use the  cotton  ball which is  completely  soaked  with  75%alcohol,wipe  the  output  windows  from  the  center towards the edge in the  same direction. Please do  not  clean  it  back  and  forth  which may scratch the windows, and  reduces output  power.6)It  is  best  to  protect  the output mirror  from  dust. Please note, do not clean  it  by  acetone.7)When  test  the  light  spot on acrylic, please  keep  the  acrylic  300mm  away from output  mirror.
