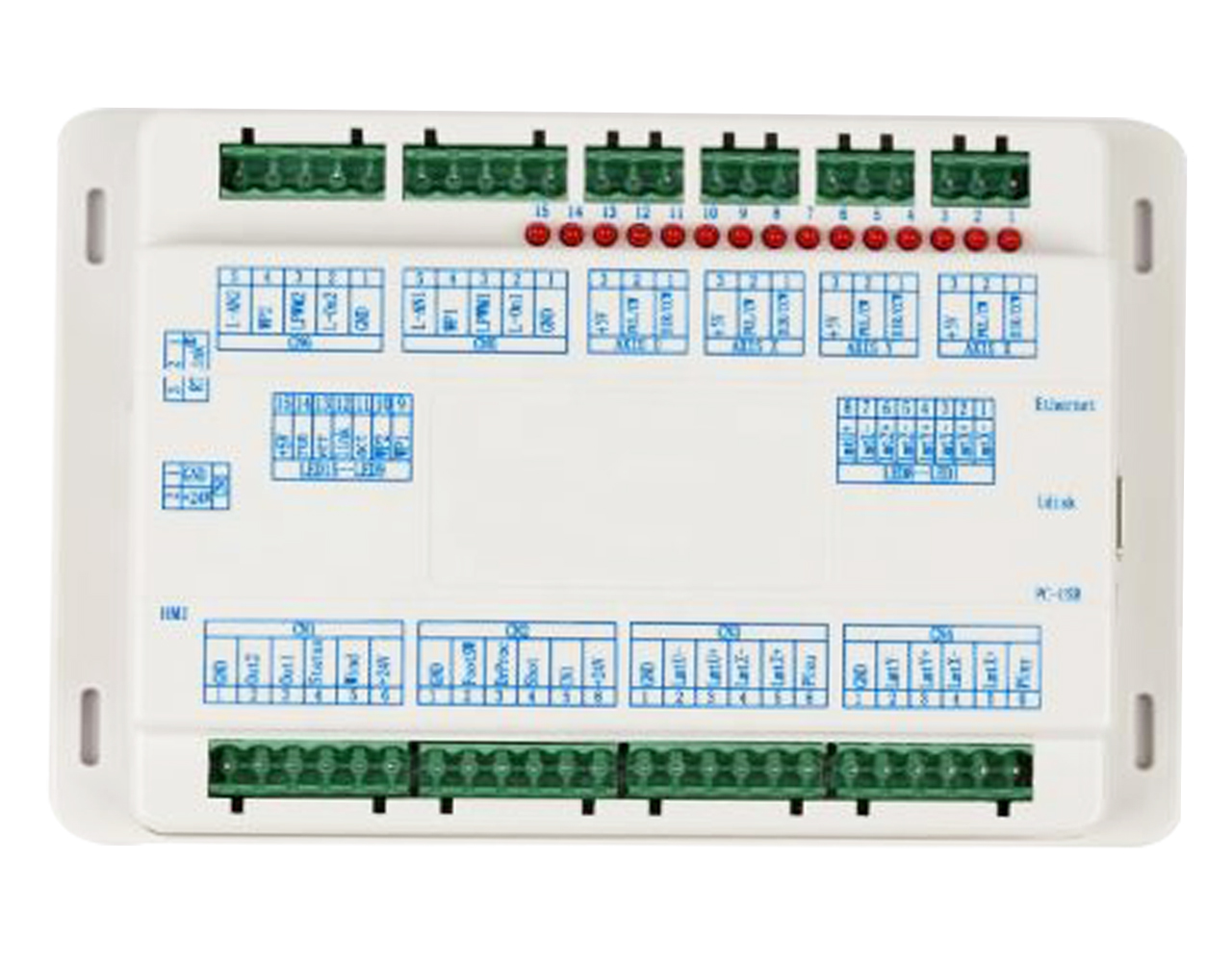

RD 6442G/S Controller/ CO₂ Laser Main board

1.The RDC6442G system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. This control system has better hardware stability and better resistance to high voltage and electrostatic interference.

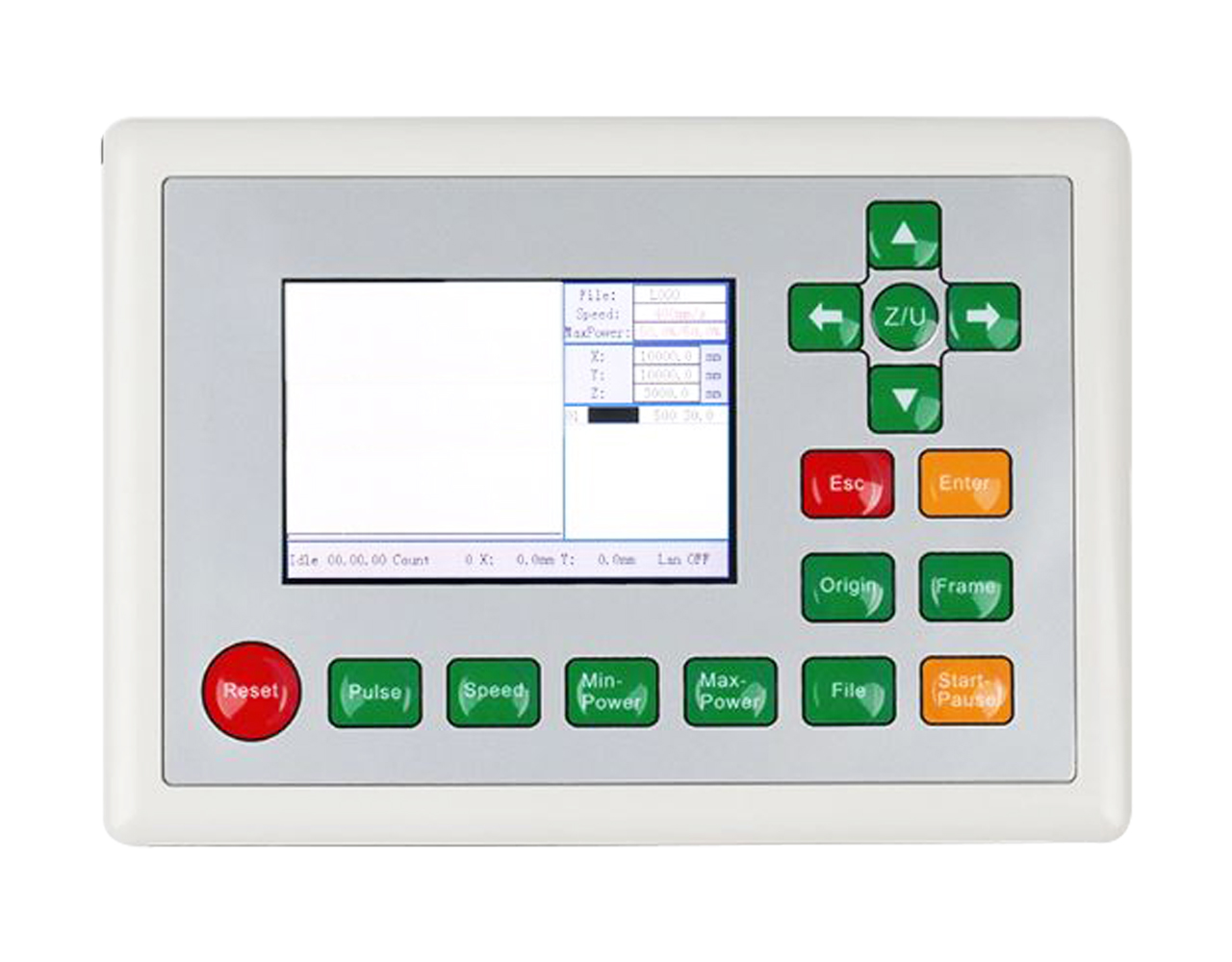

2. The human-machine operating system based on a 5-inch color screen has a more user-friendly interface and powerful functions. This controller includes more complete and excellent motion control functions, large capacity file memory, dual independent and adjustable laser power control interface with stronger compatibility, USB drive program with stronger compatibility, multi-channel general/dedicated IO control, support for Ethernet communication and USB communication automatic selection when communicating with PC.

3.This controller can support fixed single/dual excitation head machining, dual head mutual displacement machining, and ultra format segmentation cutting machining. The extended model can also support a series of functions such as MARK point visual positioning cutting, large panoramic visual cutting, projection cutting, and dual head asynchronous cutting.

1. It can run completely offline and supports reading and writing processing files on a USB drive

2. Support modifying file processing attributes, manufacturers, user parameters, etc. in offline mode

3. Support for working hours preview, accurate to millisecond level

4. Dynamically display machining trajectory, coordinate points, progress bar, etc

5. Direct operation of the panel for automatic focusing, supporting both contact and non-contact modes

6. Support manual input or automatic extraction of docking point coordinates

7. Rich external auxiliary components available for selection (wireless handle, RD-APP, RD-WIFI, etc.)

8. Convenient customization of external device expansion interfaces
